ASUS 華碩 Pro WS WRX90E-SAGE SE EEB EATX 主機板 DDR5

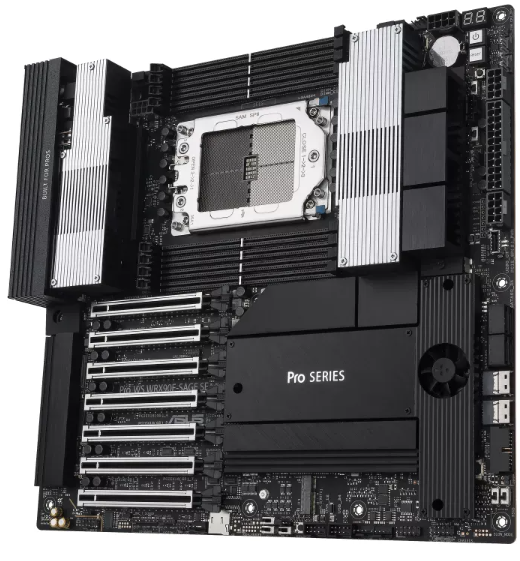

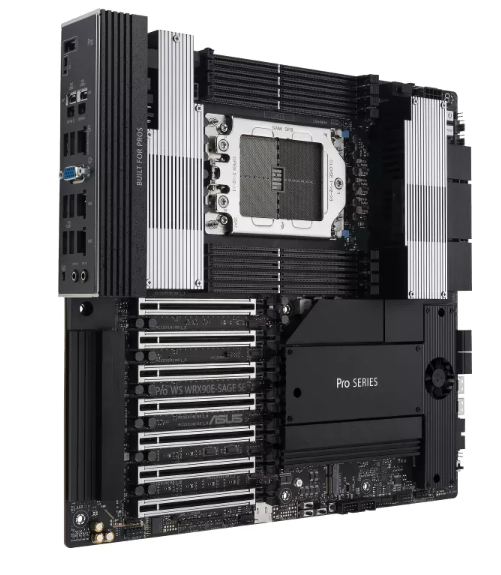

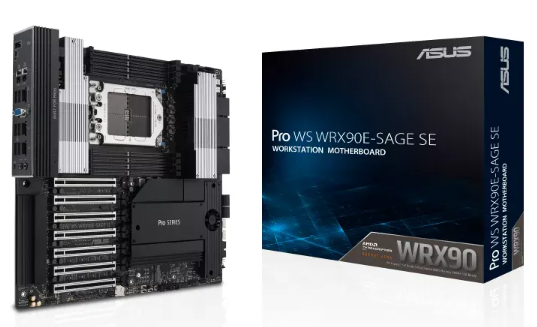

Pro WS WRX90E-SAGE SE Workstation Motherboard

The ASUS Pro WS WRX90E-SAGE SE is a high-performance workstation motherboard designed for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors. Featuring PCIe 5.0, dual 10G LAN, and server-grade remote management, it’s built for professionals demanding reliability and power.

Key Features:

• AMD sTR5 Socket: Supports up to 96-core AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors.
• Memory Support: Up to 2TB ECC R-DIMM DDR5 memory, 8-channel architecture.
• PCIe 5.0 Slots: 7 x PCIe 5.0 x16 slots for multi-GPU setups.
• Storage Options: 4 x M.2 slots (PCIe 5.0), 2 x SlimSAS, and 4 x SATA 6Gb/s ports.
• Dual 10G LAN: Intel® 10G Ethernet for high-speed networking.
• Server-Grade IPMI: Remote management via AST2600 BMC controller and ASUS Control Center Express.
• Robust Power Design: 32+3+3+3 power stages, dual 8-pin CPU power connectors, and advanced cooling.
• PCIe Q-Release Slim: Easily remove graphics cards without pressing a latch.
• Trusted Stability: 24/7 operation tested, extensive QVL compatibility.

Connectivity:

• Rear I/O: 2 x USB4® 40Gbps Type-C®, 6 x USB 10Gbps, 1 x USB 2.0, 2 x 10G LAN, 1 x 1G LAN, VGA, audio jacks, and more.
• Internal Connectors: 1 x USB 20Gbps Type-C®, 1 x USB 5Gbps header, 2 x USB 2.0 headers, and more.

Special Features:

• ASUS Thermal Solution: M.2 heatsinks, backplates, and VRM cooling with active fans.
• ASUS 5X Protection III: Safeguards against overvoltage, ESD, and more.
• ASUS EZ DIY: BIOS FlashBack™, Clear CMOS button, and pre-mounted I/O shield.

Software & Management:

• ASUS Control Center Express: Remote monitoring and management.
• Armoury Crate & AI Suite: System optimization and fan control.
• UEFI BIOS: Advanced settings for performance tuning.

Form Factor & Accessories:

• EEB Form Factor: 12 x 13 inches (30.5 x 33 cm).

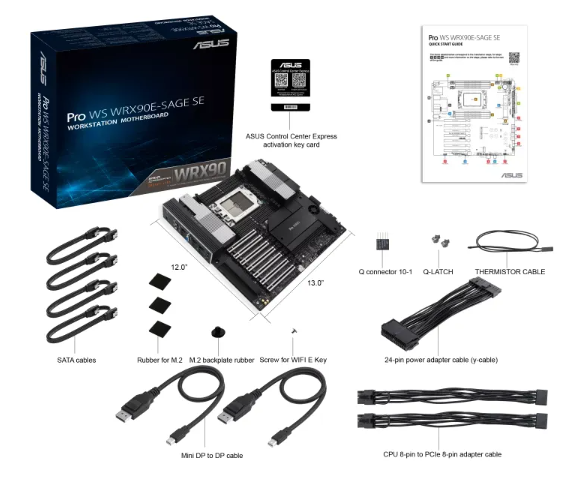

• Included Accessories: PCIe power cables, SATA cables, M.2 Q-Latch, and more.
