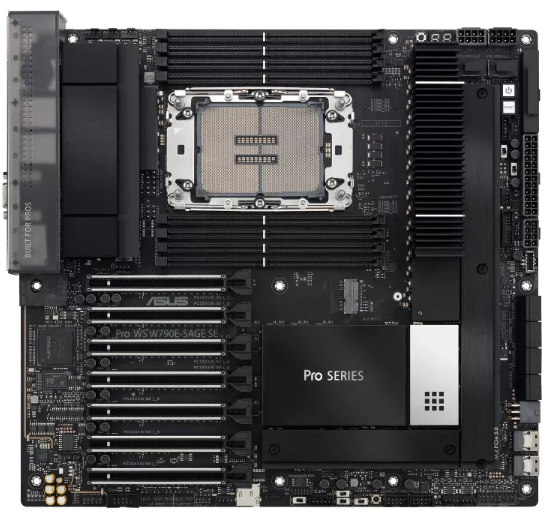

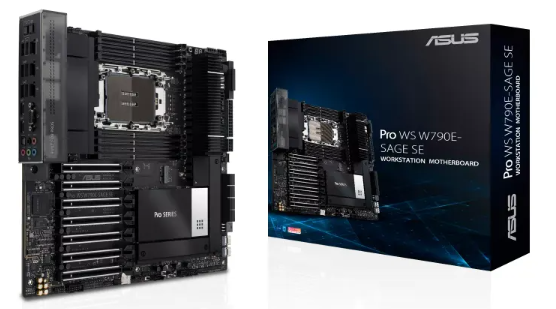

Pro WS W790E-SAGE SE Workstation Motherboard

The ASUS Pro WS W790E-SAGE SE is a high-performance workstation motherboard designed for Intel® Xeon® W-3400 and W-2400 processors. Featuring PCIe 5.0, dual 10G LAN, and server-grade remote management, it’s built for professionals demanding reliability and power.

Key Features:

Intel® LGA 4677 Socket: Supports Intel® Xeon® W-3400 & W-2400 processors with Turbo Boost Max 3.0.
Memory Support: Up to 2TB ECC R-DIMM DDR5 memory, 8-channel architecture, and Intel® XMP support.
PCIe 5.0 Slots: 7 x PCIe 5.0 x16 slots (W-3400) or 4 x PCIe 5.0 x16 slots (W-2400).
Storage Options: 3 x M.2 slots (PCIe 5.0/4.0), 2 x SlimSAS, and 8 x SATA 6Gb/s ports.
Dual 10G LAN: Intel® X710-AT2 10G Ethernet for high-speed networking.
Server-Grade IPMI: Remote management via AST2600 BMC controller and ASUS Control Center Express.
Robust Power Design: 14+1+1 power stages, 8-pin + 6-pin PCIe power connectors, and advanced cooling.
Trusted Stability: 24/7 operation tested, extensive QVL compatibility.

Connectivity:

Rear I/O: 1 x USB 3.2 Gen 2×2 Type-C®, 5 x USB 3.2 Gen 2, 2 x USB 2.0, 2 x 10G LAN, 1 x 1G LAN, VGA, audio jacks, and optical S/PDIF.
Internal Connectors: 1 x USB 3.2 Gen 2 Type-C®, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, and more.

Special Features:

Extreme OC Kit: FlexKey, LN2 Mode, ReTry button, Safe Boot, and Start button for overclocking.
ASUS Thermal Solution: M.2 heatsinks, backplates, and VRM cooling for optimal performance.
ASUS 5X Protection III: Safeguards against overvoltage, ESD, and more.
ASUS EZ DIY: BIOS FlashBack™, Clear CMOS button, and pre-mounted I/O shield.

Software & Management:
